C4EB1BF1 - 206 CABRIOLET

IDENTIFICATION FITS AND CLEARANCES

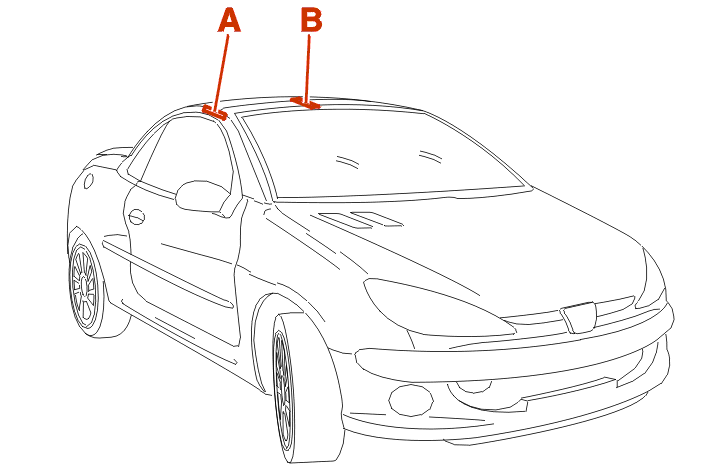

1 - FOLDING ROOF

Front side sections (A) .

Front centre section (B) .

Rear centre section (C) .

Rear side sections (D) .

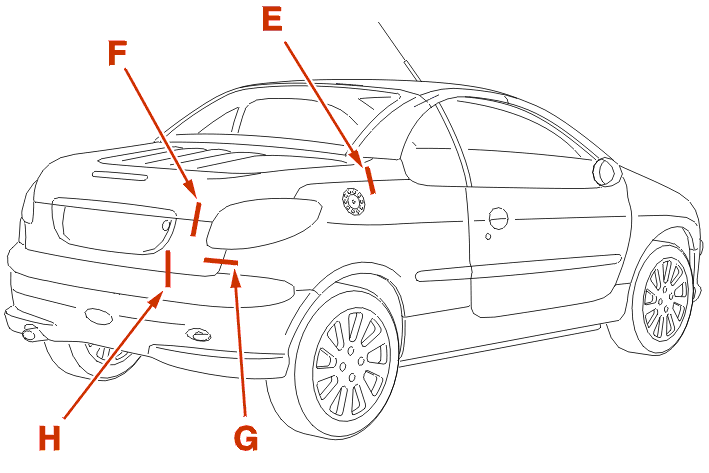

2 - REAR BATTERY UNIT

Boot upper cover / Rear wing (E) .

Boot upper cover / Lower boot cover (F) .

Lower boot cover / Rear wing (G) .

Lower boot cover / Rear bumper (H) .

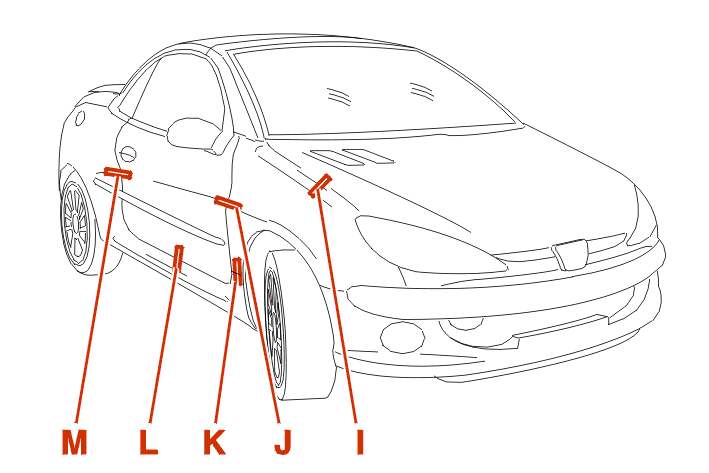

3 - DOORS AND BONNET

Bonnet / Front wing (I) .

Door / Front wing (J) .

Understructure / Front wing (K) .

Door / Understructure (L) .

Door / Rear wing (M) .
