C4CG30F1 - 206

REMOVAL - REFITTING EXTERIOR REARVIEW MIRROR GUSSET

1 - REMOVAL

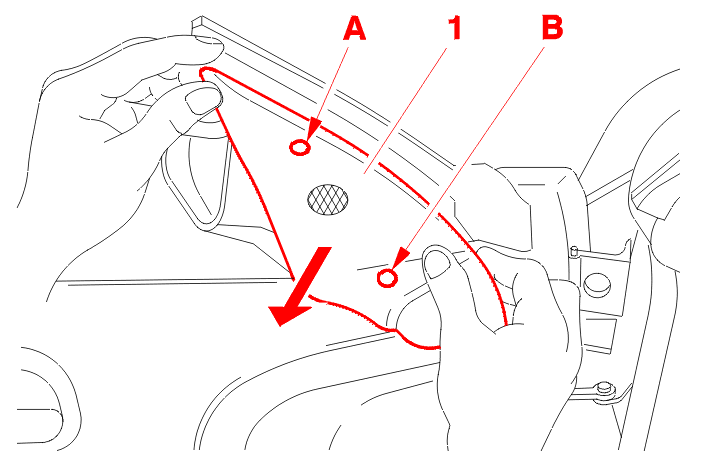

Pull the cheater (1) towards you gradually to unclip it at (A) and (B) .

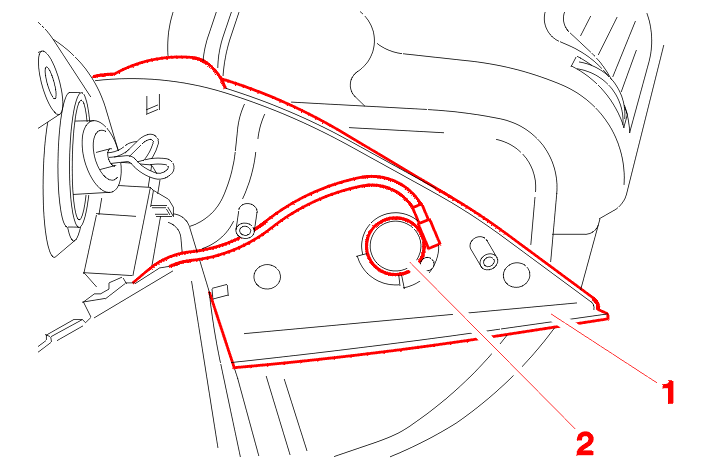

Turn the tweeter (2) to unclip it from the cheater (1) .

Remove the cheater (1) .

2 - REFITTING

Proceed in the reverse order to removal .

Test operation .
