C4CG28F1 - 206 CABRIOLET

REMOVAL - REFITTING : EXTERIOR DOOR WEATHERSTRIP

1 - REMOVAL

Lower the window .

UNSCREW THE MIRROR MOUNTINGS .

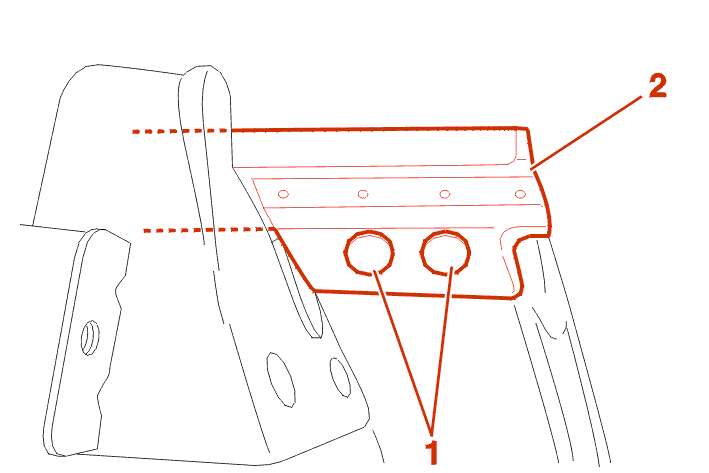

Remove :

• the clips (1)
• the exterior weatherstrip (2)

2 - REFITTING

NOTE : apply a product to assist fitting on the flange (example: soapy water) .

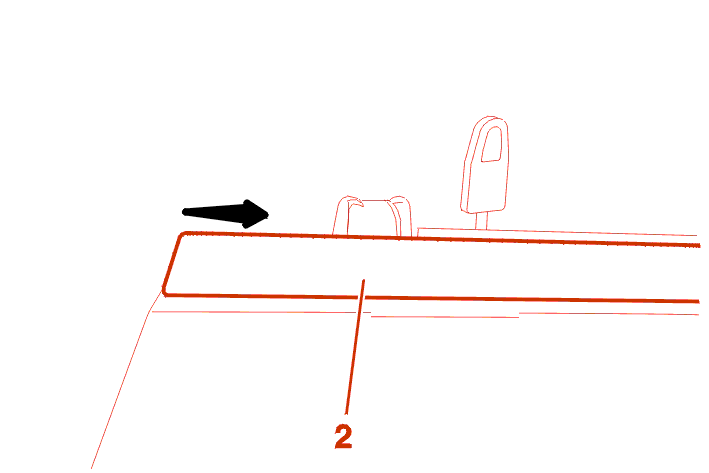

Fit the weatherstrip (2) at the front .

Push the weatherstrip forwards to position it in relation to the door panel, at the rear .

Finish fitting the seal .

Tighten the mirror mountings .

Raise the glass .
