B2FG09K1 - 206 MA GEARBOX

REMOVAL - REFITTING DRIVE SHAFTS

1 - TOOLING

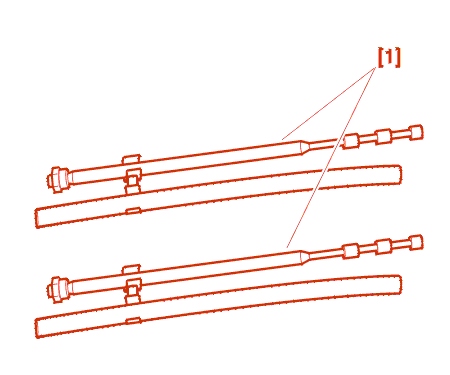

Set of 2 spring retaining rods (-).0918-Z .

2 - REMOVAL

Use a wheel free lift (To make the operation easier) .

POSITION THE SPRING RETAINING RODS [1] .

Remove the wheels .

USE TOOL [26] TO PREVENT THE HUB FROM TURNING .

DRAIN THE GEARBOX .

Right hand drive shaft :

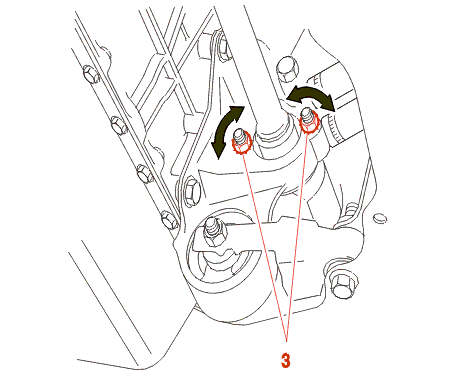

• slacken the nuts (3) (fully)

Turn the fasteners a quarter turn .

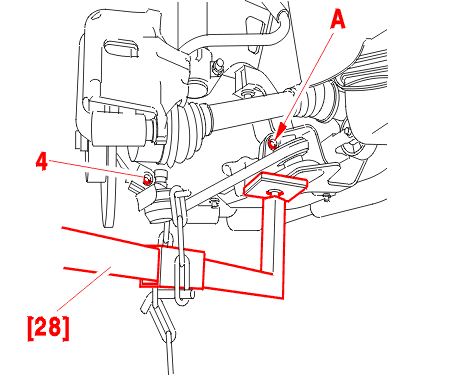

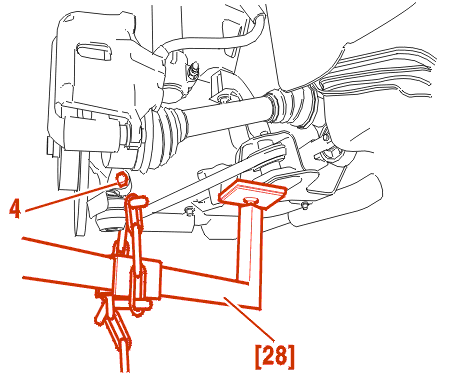

Remove the bolt (4) .

DETACH THE SWIVEL BALL JOINT (Using the tool [28]) .

Place a nut or a pin at (A) to immobilise the lower wishbone in a low position .

Right hand drive shaft :

• turn the steering to full right lock

Left hand drive shaft :

• turn the steering to full left lock

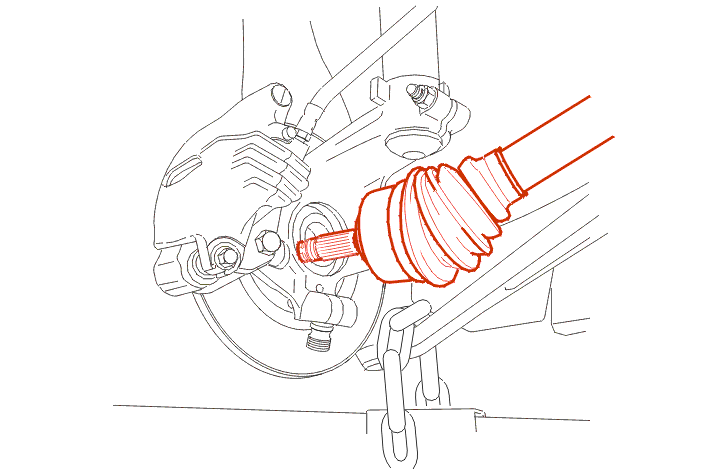

Detach the drive shaft from the hub .

Remove the drive shaft .

Right hand drive shaft :

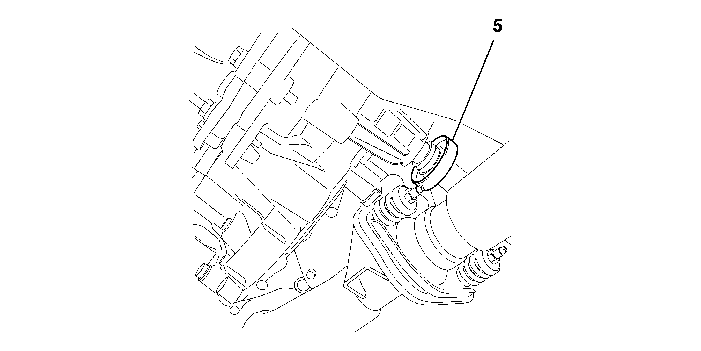

• retrieve the deflector (5)

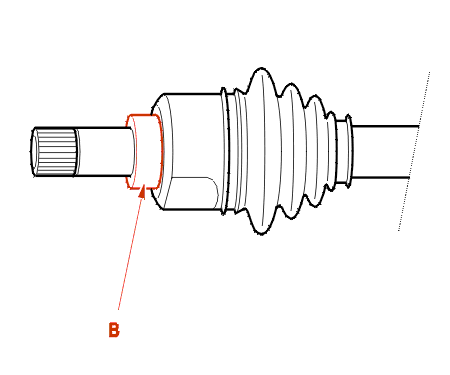

Attach a piece of adhesive tape to protect the differential outlet seal faces (B) .

3 - REFITTING

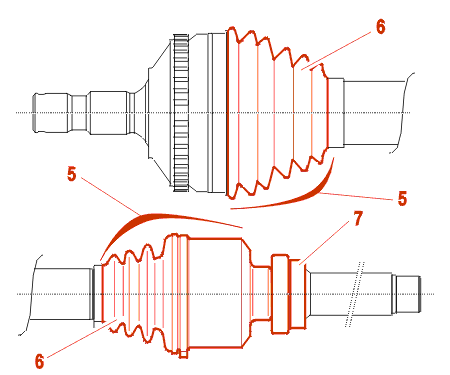

Check :

• there is no clearance in the joints (5)
• the condition of the gaiters (6)
• the bearing roller (7)

Rectify (If necessary) .

Clean and coat with TOTAL 3945 multi-purpose grease the splines of the hub and of the driveshaft at the wheel end .

Right hand drive shaft :

• clean and coat with TOTAL 3945 multi-purpose grease the outer bush of the bearing roller (7) and its housing in the right-hand lower engine mounting

Replace :

• THE RIGHT-HAND DIFFERENTIAL OUTPUT SEAL (using the tool [36])
• the left-hand differential output sealTHE LEFT-HAND DIFFERENTIAL OUTPUT SEAL (using the tool [37])

Remove the adhesive tape .

Refit the driveshaft in the differential .

Right hand drive shaft :

• place the deflector in its groove (C)

Fit :

• the driveshaft in the hub
• the pivot ball joint using tool [28]
• the bolt (4) : tightening torque : 4 da.Nm

Remove the tool [28] .

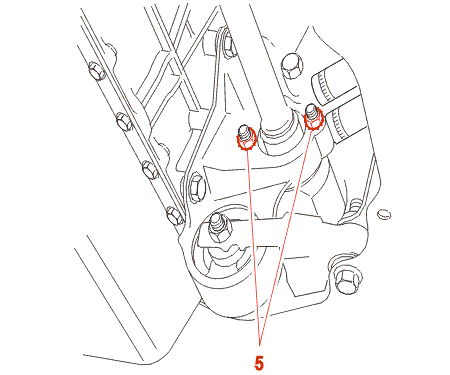

Pre-tighten one bearing nut (5) to 0.5 daN.m .

Tighten the other bearing nut (5) to 1 daN.m .

Complete the tightening of the first nut to 1 daN.m .

FILL THE GEARBOX .

Use MOLYKOTE D321R type surface grease to coat the surface and the threads of the nut (1) .

Tighten the nut (1) to 24.5 da.Nm .

Crimp the nut (1) using tool [35] .

Fit the wheels .

Tightening torque : 8.5 da.Nm .
