C5IG14F1 - 206 CABRIOLET
REMOVAL - REFITTING HYDRAULIC CENTRAL UNIT
1 - REMOVAL
Change the vehicle into the coupé version .
Open the boot .

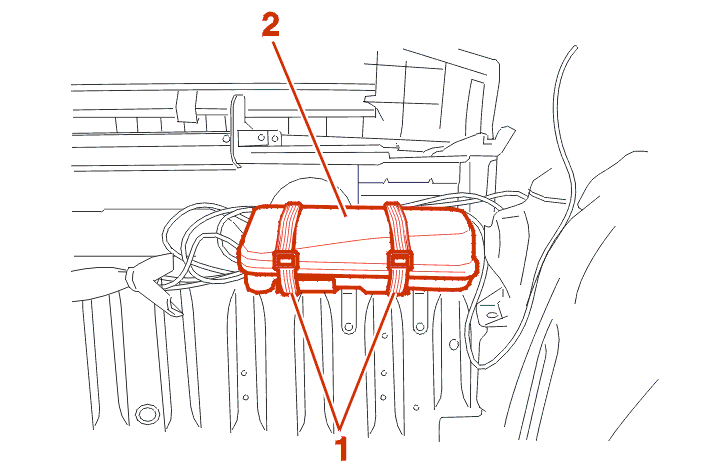

REMOVE THE UPPER TRIM FROM THE CONTROL UNIT .
CARRY OUT THE LOAD REDUCTION OPERATION FOR THE HYDRAULIC UNIT .
Remove :

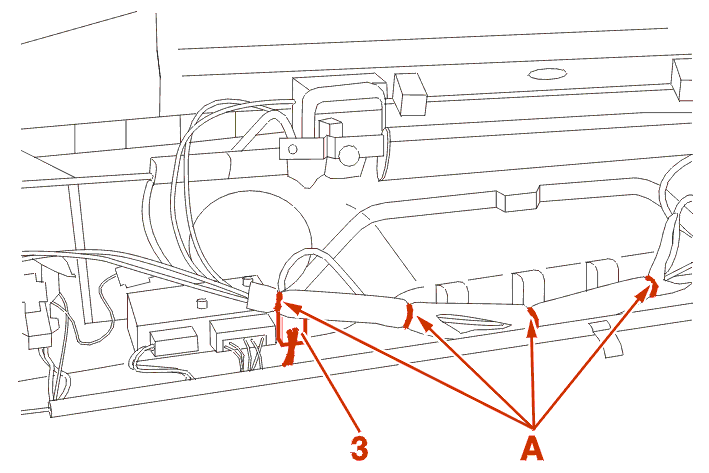

Cut the tie-wraps (A) .
Disconnect the connector (3) .
Remove :
2 - REFITTING

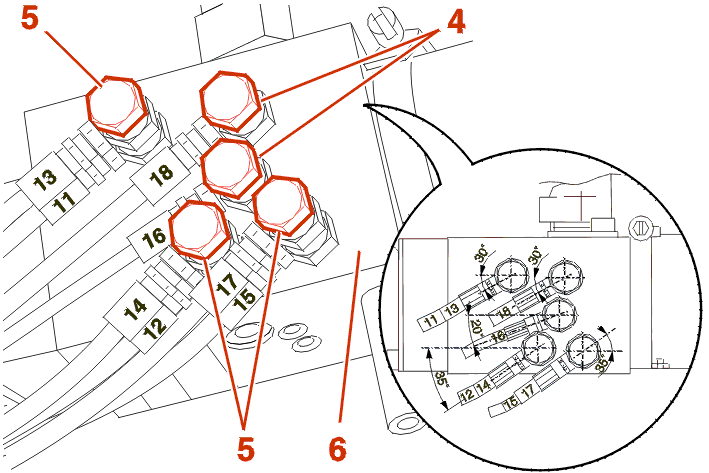

| mark(s) on the hydraulic pipe(s) | ||
|---|---|---|
| struts | input | outlet |
| left roof strut | 11 | 12 |
| right roof strut | 13 | 14 |
| moving shelf strut | 17 | 18 |
| boot left strut | - | - |
| boot right strut | 15 | 16 |
WARNING : observe strictly the above order and fit new copper seals .
Tighten :
Continue the fitting operations in the reverse order to removal .
Test operation .
