C4CG1YF1 - 206 CABRIOLET

REMOVAL - REFITTING BOOT STRUT

1 - REMOVAL

Remove :

• THE REAR SEAT
• THE REAR SEAT BACK REST
• THE REAR QUARTER PANEL SIDE TOP TRIM
• THE REAR QUARTER PANEL SIDE TRIM PANEL
• the rear seat belt housing

Open the luggage compartment .

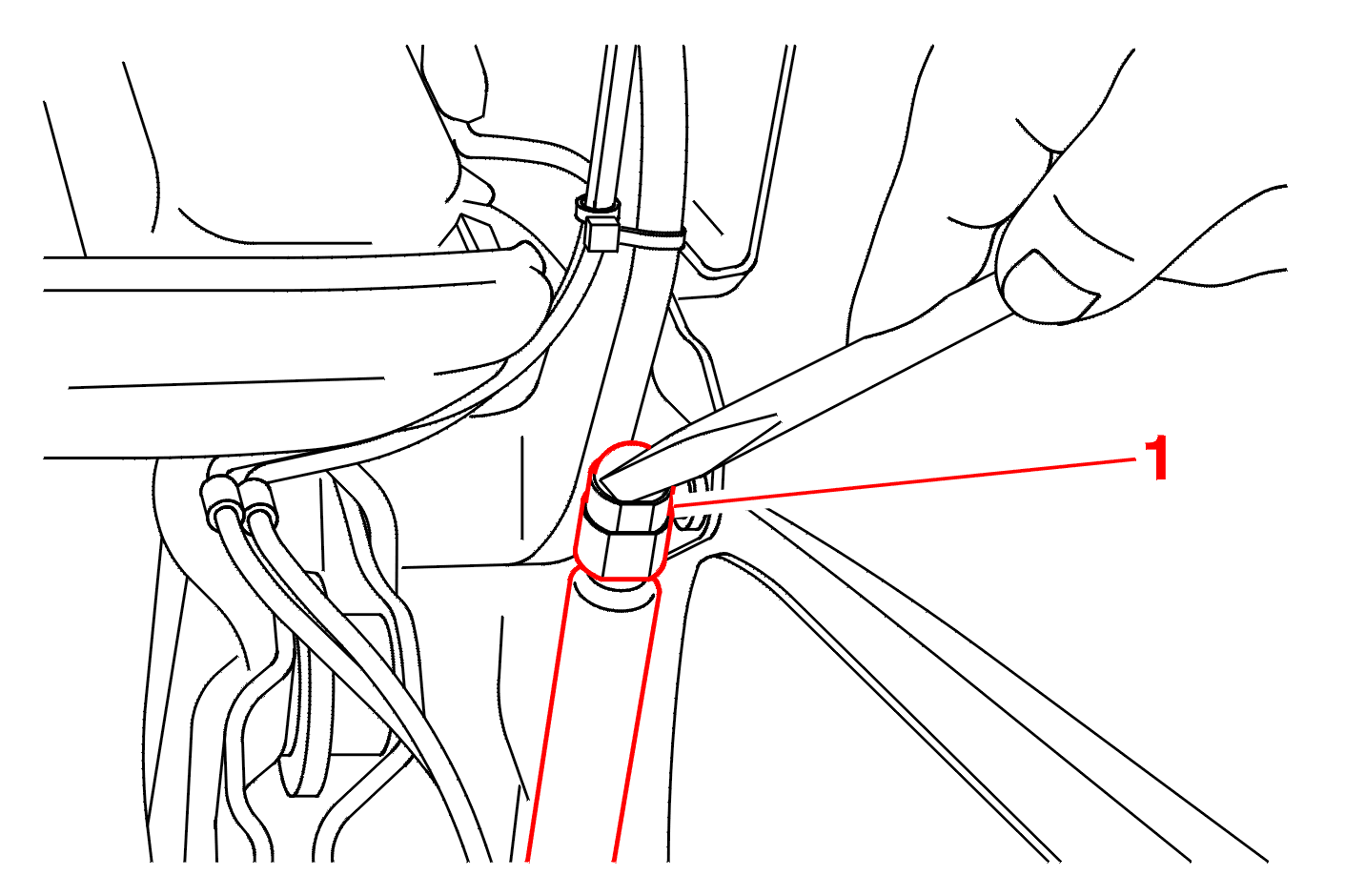

Uncouple the strut (1) at the top leaving the clip on the strut body .

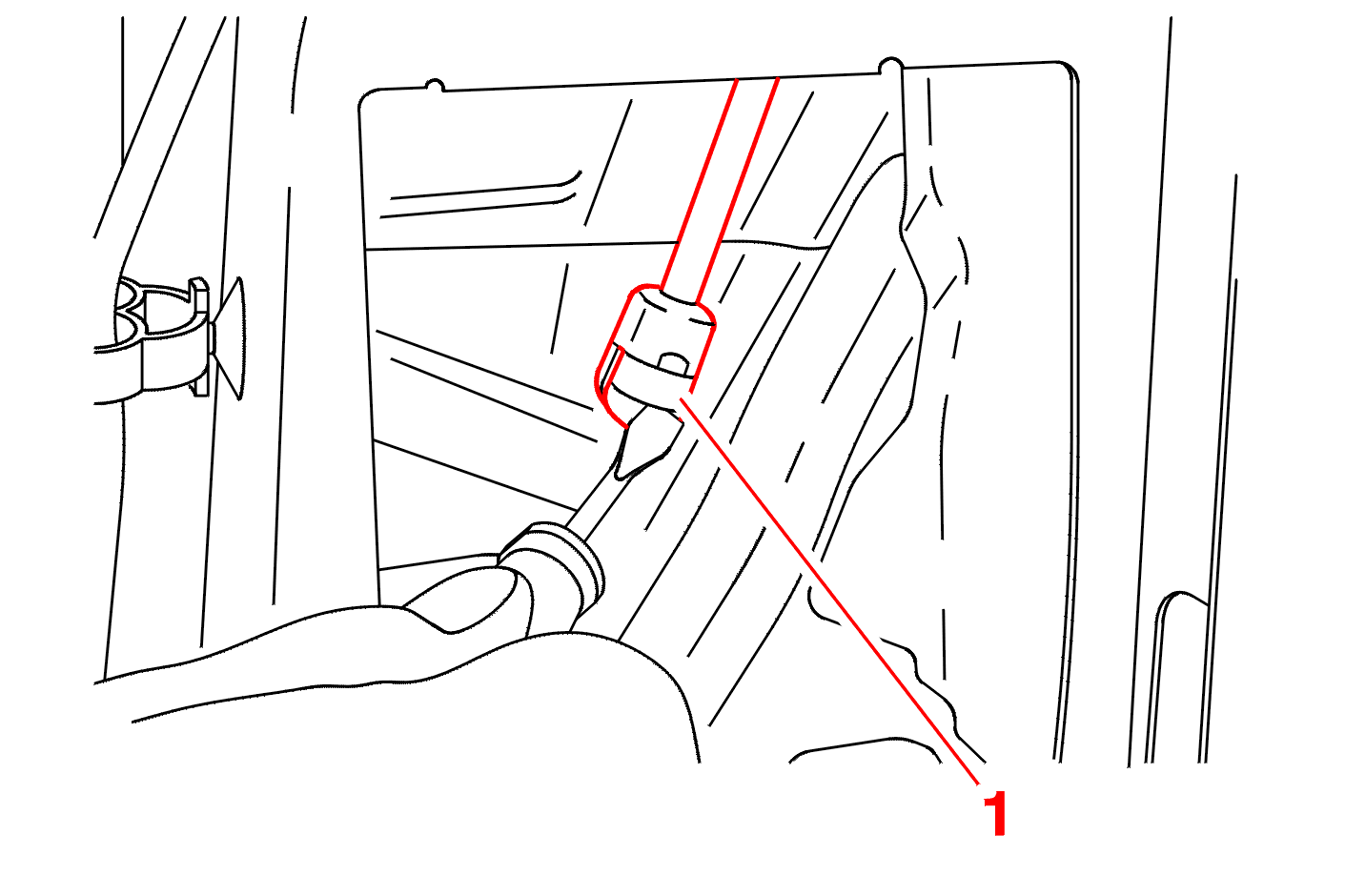

Uncouple the strut (1) at the bottom .

Detach then remove the strut .

2 - REFITTING

Proceed in the reverse order to removal .

Tighten the rear seat belt housing bolt to 3 ± 1 dan.m .

Test operation .
