B2CG77K1 - 206 AL4 AUTOMATIC GEARBOX

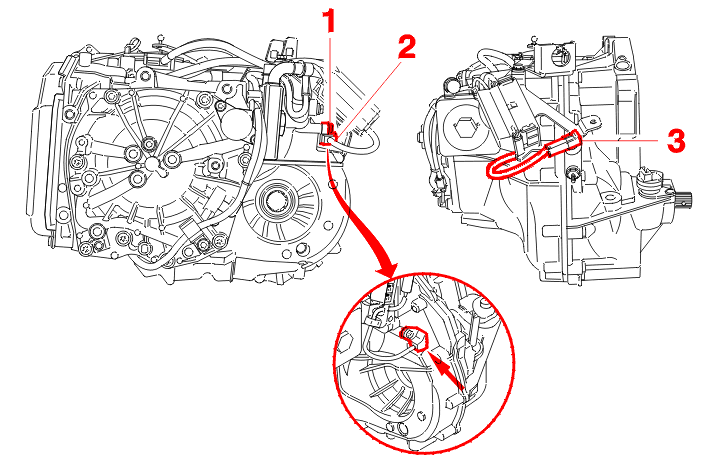

REMOVAL - REFITTING GEARBOX OUTPUT SPEED SENSOR

1 - REMOVAL

NOTE : do not drain the gearbox .

Disconnect the battery + terminal .

WARNING : the connector mounting (3) is fragile .

Remove :

2 - REFITTING

Replace the sensor o ring (2) .

Fit :

Reconnect the positive terminal of the battery .
