B2BE02K1 - 206 MA GEARBOX

CHECK - ADJUSTMENT CLUTCH CONTROL

1 - PRELIMINARY OPERATIONS

RIGHT HAND DRIVE

LEFT HAND DRIVE

ALL MODELS

Check :

RIGHT HAND DRIVE

Check the clamping of the clutch cable to the bulkhead .

ALL MODELS

2 - CHECK - ADJUSTMENT

Check that there is a minimum clearance (X) .

If there is not, adjust the bolt (1) .

NOTE : if the clearance (X) is too great this could result in a creaking sound .

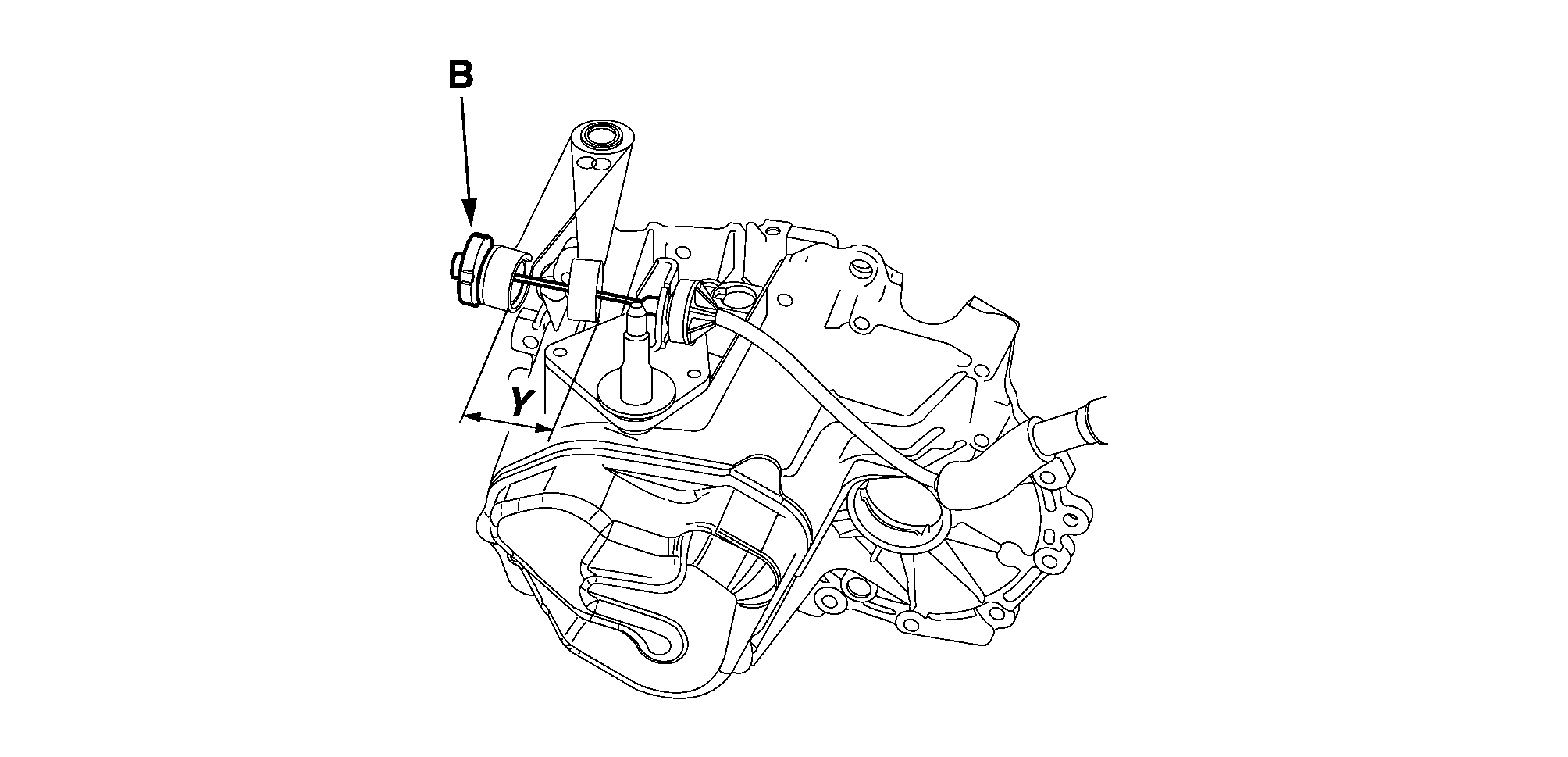

Pull the cable at (B) :

Check the travel of the clutch cable .

If Y ≥ 24 mm :

If Y : Less than 24 mm :
